Philosophy
Balanced Audio Technology is proud of the ongoing innovation it
brings to high-end audio. We’re focused on providing a refreshing and
unconventional approach to product design, and creating state-of-the-art
components featuring stunning build quality and exceptional musical fidelity.
Balanced Audio Technology staked its reputation on the fact that “balanced is
better” when balanced wasn’t cool. Today, balanced circuits have become the de
facto standard in high-end audio design. Yet, achieving the proper balance in
circuit design remains elusive to our competition. For example, in a world of
preamplifiers populated by multiple gain stages and cathode-follower circuits,
Balanced Audio Technology offers its Unistage design. This Unistage circuit is
employed in all of our preamplifiers—from the VK-33 Series to the reference REX
II preamplifier. Its benefit pertains to the ultimate simplicity of amplifying
the incoming signal only once, with no global feedback to double-back on the
straight-through integrity of said signal. Imagine telling a joke to your
friends and saying, “pass it on.” Pass it on enough times and you won’t
recognize the joke. Similarly, pass the music through too many gain stages and
you’ll no longer recognize the genius and beauty of your favorite recordings.
Keeping everything easy for customers extends to our intelligent
automatic-biasing circuit, included on every BAT vacuum-tube power amplifier.
The result: Plug and play simplicity. No digital or analog volt meters with
which to struggle; no question of whether to set the dial in milliamps or
millivolts. Just turn on a BAT amplifier, relax, and enjoy your music. At the
beginning of the new millennium, Balanced Audio Technology introduced the world
to the 6H30 SuperTube. We negotiated the release of the 6H30 tube from being
banned for export due to its military use in Russia and the former Soviet Union.
Today, the 6H30 SuperTube is used in a majority of our competitors’ reference
tube designs. Yet, no company will ever have more experience in the proper
circuit design for the 6H30 SuperTube than BAT. Industry leadership has its
inherent benefits. Balanced Audio Technology continues to strive for excellence
in every aspect of business—from our emphasis on exceptional customer support to
innovation in product design and, most importantly, to the musical enjoyment
provided by every component we manufacture. Balanced Audio Technology: All you
need to do is listen.




BAT
VK3000SE
Offerta
€. 9.600,00

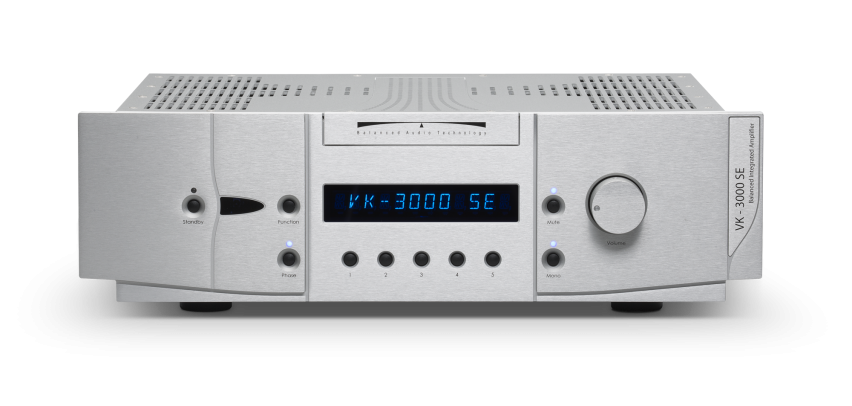

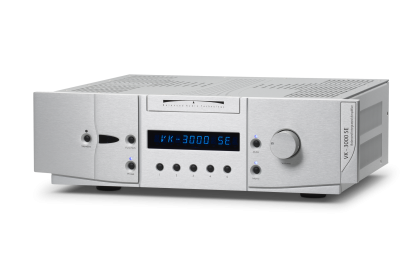

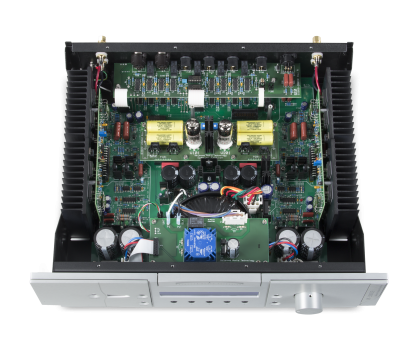

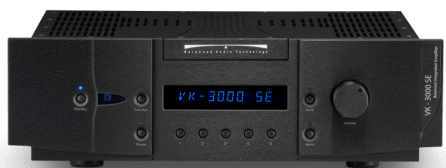

Balanced Audio Technology’s VK-3000SE integrated
amplifier embodies simplicity without compromise. At last, audiophiles can get
no-limits musical finesse and exceptional performance in one convenient package.
Competitive with reference-level separates, the VK-3000SE provides a robust 150
watts per channel into 8-ohm loads and doubles this output into 4-ohm loads.
Combine such ability with BAT’s vacuum-tube preamplifier section—based on the
same reference 6H30 SuperTube used in the flagship REX II preamplifier—and you
get sublime power matched with richly textured musicality. Sonically open,
delicate, and smooth, the VK-3000SE allows any space to breathe with exquisite
music ULTIMATE VERSATILITY, OPTIONAL PHONO CARD Incredibly versatile, the
VK-3000SE can be configured to meet almost any system need. A programmable user
interface allows you to easily mate the VK-3000SE with a home-theater system.
Change sources, switch polarity, or fade music with just one touch—all from the
included machined-aluminum remote control. Add in the optional phono module, and
you’ll obtain superb reproduction of your analog record collection from either
moving-magnet or low-output moving-coil cartridges. Use the vacuum-tube
preamplifier outputs to control an amplifier in a second room.THOROUGHBRED
DESIGN, SIGNATURE LOOK Many integrated amplifiers offer the benefit of
convenience, but little else. The VK-3000SE is different. Its circuitry and
build maintain the uncompromisingly high caliber found in BAT’s flagship
components. The output stage employs the symmetrical bipolar design used in
BAT’s reference VK-6200 multichannel power amplifier. The preamplifier section
uses the same 6H30 SuperTube Unistage design topology employed throughout BAT’s
Special Edition tube preamplifiers—right down to the paper-in-oil signal
capacitors. To literally cap it off, the VK-3000SE features a gorgeous aluminum

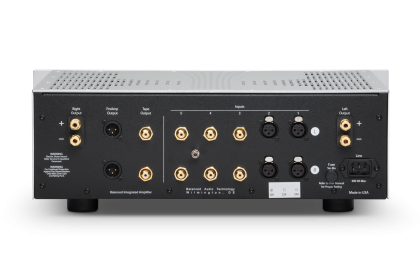

top cover and side panels that add to its signature look.VK-3000SE Amplifier
Number of Channels 2 Output Power at 8Ω/4Ω 150W / 300W Frequency Response
2Hz to 180kHzInputs 2 XLR + 3 RCA Input Impedance 100 kΩminimum each phase
Volume control resolution 0.5db Volume Control number of steps 140 Tube
Complement 2 x 6H30 Preamplifier Outputs 1 XLR balanced outputTape Output 1 RCA
Speaker Outputs 2 pair gold-plated binding postsRemote Control Standard Options
Phono (MM/MC) Color (black,silver/black) Dimensions (WHD) Inches 19" x 5.75" x
15.5" Weight 50 lbs



BAT
VK23
SE
Offerta
€. 6.200,00

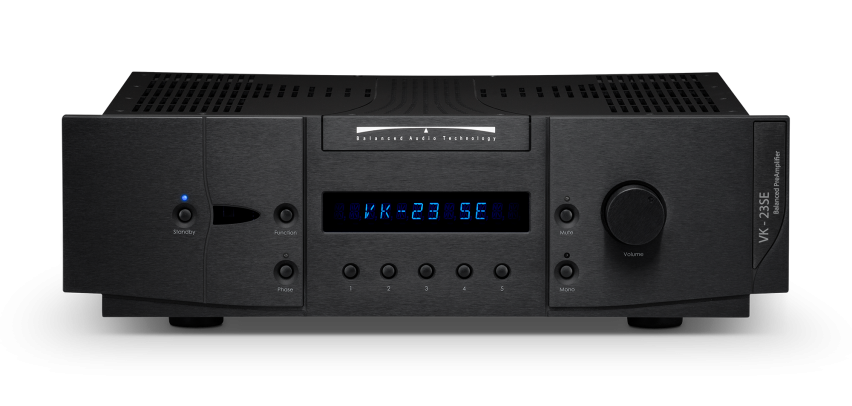

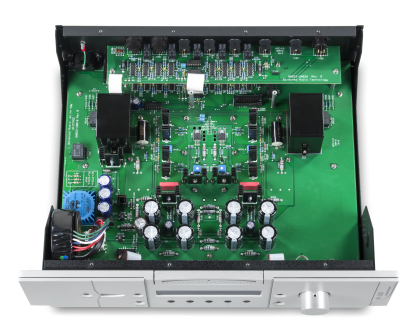

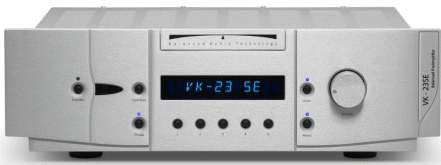

STEEPED

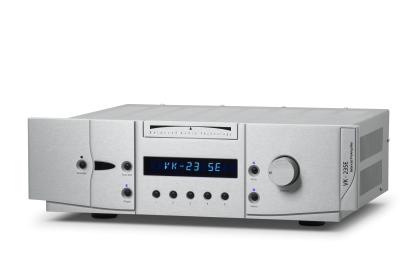

IN TECHNOLOGY FOUND IN BAT’S FLAGSHIP DESIGNS On the surface, VK-23SE is
Balanced Audio Technology entry-level solid-state preamplifier. Yet it’s packed
with much of the same technology found in the company’s flagship solid-state and
vacuum-tube preamplifiers. VK-23SE combines BAT’s trademark high-current
Unistage topology with the transformer-coupled outputs that anchor every BAT
Special Edition preamplifier. They work in conjunction with a symmetrical
N-channel UnistageTM gain block to provide BAT’s hallmark performance. An
easy-to-use programmable user interface and discrete 140-step shunt volume
control are the same as those found on BAT’s top-of-the-line REX II preamplifier—right
down to the Vishay bulk foil resistors used in the volume-control circuit.
FULLY
BALANCED, UNISTAGE TOPOLOGY, PROPRIETARY VOLUME CONTROL Naturally, VK-23SE is
fully balanced. The signal in VK-23SE is transmitted through only one gain
stage, leaving it free of the negative artifacts attributable to both extremes
of modern preamplifier design. Its circuit is based entirely on N-Channel MOSFET
devices. VK-23SE offers another rare advantage in that identical devices—in
identical circuit configuration—handle both sides of the audio waveform and
ensure ultimate symmetry of the resulting signal. Employing the same
sophisticated volume-control circuit as the REX II preamplifier, VK-23SE also
boasts a proprietary electronic shunt volume attenuator that offers 140 steps of
0.5dB resolution for precise control.TUBE-LIKE SONICS, SUPERB USER INTERFACE,
CUSTOMIZABILITY, OPTIONAL PHONO MODULE Offering relief from the fatiguing sonics
associated with most solid-state preamplifiers, VK-23SE combines a tube-like
presentation with see-through transparency and a bell-like purity of tone.
Simple to use out of the box, VK-23SE is just as easy to customize. You can dim
the display from the comfort of your chair by using the BAT remote. Fade music
at the touch of a button. Switch phase to see if a recording is made in reverse
absolute polarity. Even name your sources. VK-23SE can even be ordered with the
outstanding VK-P20, a solid-state phono module that hangs with external
phonostages twice its price.

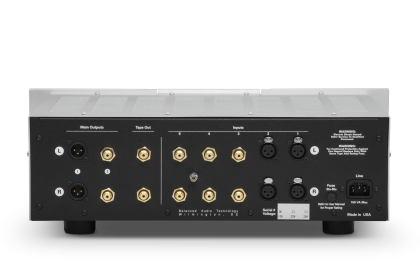

VK-23SE Preamplifier Inputs: 2x XLR + 3x RCA
Distortion at 2V output: 0.02%Outputs - Main: 1x XLR + 1x RCA Maximum Output
Signal: 12V Outputs - Tape: 1x RCA Absolute Polarity: Switchable Maximum Gain:
20dB Power Consumption: 50VA Global Feedback: None Dimensions: Volume
Control Resolution: 0.5dB Output Impedance: 400Ω each phase Volume Control
Number of Steps: 140 Noise (unweighted): -96dB Frequency Response: 2Hz to 100kHz
Dimensions 19" x 5.75" x 15.5" Input Impedance (minimum): 100kΩ each phase
Weight 30lb.


BAT
VK33
SE
Offerta
€. 8.400,00

Versione se
12.400,00 euro
Optional scheda phono 1.400,00
euro

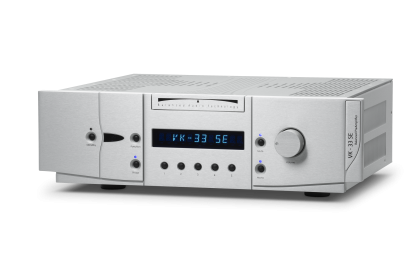

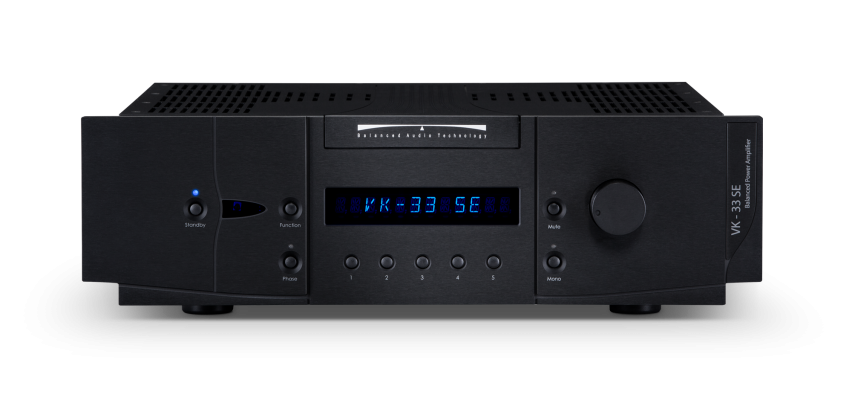

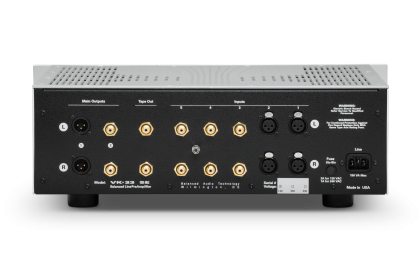

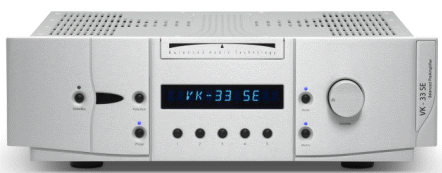

UNCOMMONLY

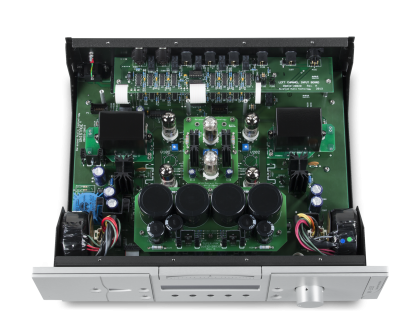

GOOD TRANSFORMER DESIGN With its new transformer-coupled outputs and
superb user interface, the VK-33SE offers both extremely dynamic, transparent
renditions of musical events and the industry’s best ease-of-use versatility.
The result of intense research, each of the preamplifier’s transformer-coupled
outputs is encapsulated within a mu-metal shield, a design substantially
superior to any capacitor in maintaining purity of signal transmission. True to
its heritage, the VK-33SE uses the 6H30 SuperTube to form a high-current,
low-impedance gain stage. For extra convenience, the fully balanced VK-33SE even
incorporates a mix of balanced and single-ended inputs as well as outputs.NEVER
FRET ABOUT VOLUME LEVELS AGAIN Effectively, the signal in the VK-33SE
preamplifier is transmitted through only one gain stage. This UnistageTM circuit
provides the ultimate simplicity of amplifying the incoming signal only once and
uses no global feedback to double-back on the straight-through integrity of said
signal. Pass music through too many gain stages, and you’ll no longer recognize
the genius and beauty of your favorite recordings. And with the VK-33SE, you can
always get the volume just right. A proprietary electronic shunt volume
attenuator offers 140 steps of 0.5dB resolution that give precise, repeatable
volume settings that sound continuous to the human ear.UNPARALLELED INTERFACE
AND OPTIONS The VK-33SE is easy to use right out of the box. You can dim the
display from the comfort of your chair by using the BAT remote. Fade music at
the touch of a button. Switch phase to see if a recording is made in reverse
absolute polarity. Even name your sources. For example, name your home-theater
playback input “THTR.” Then, fix the volume for your THTR input to control your
home-theater system from your pre/pro remote. Analog lovers are also in luck.
Simply order the VK-33SE with Balanced Audio Technology’s VK-P3 phono card,
which provides switch-selectable moving-magnet and moving-coil gain settings.VK-33SE
Preamplifier Inputs: 2x XLR + 3x RCA Output Impedance: 300Ω Outputs - Main: 1x
XLR + 1x RCA Noise (unweighted): -96dB Outputs - Tape: 1x RCA Distortion at 2V
output: 0.005%Maximum Gain: 18dB Maximum Output Signal: 30VGlobal Feedback: None
Absolute Polarity: Switchable Volume Control Resolution: 0.5dB Power Consumption:
150VA Volume Control Number of Steps: 140 Dimensions: 19" x 5.75" x 15.5"
Frequency Response: 2Hz to 200kHz Weight: 40lb. Input Impedance (minimum): 100kΩ
Tube Complement: 4x 6H30, 2x 6C19

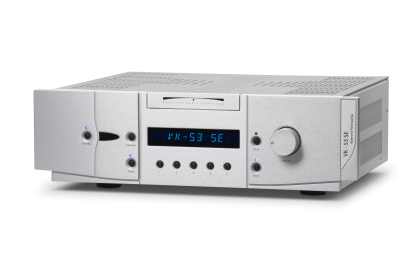

BAT
VK53
SE
Offerta
€. 18.700,00

Optional scheda phono 1.400,00 euro

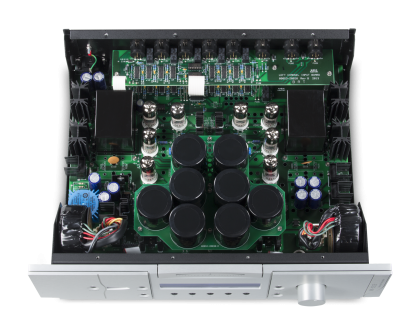

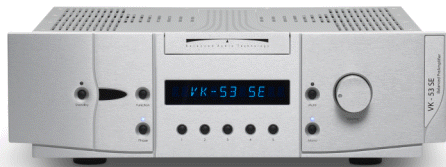

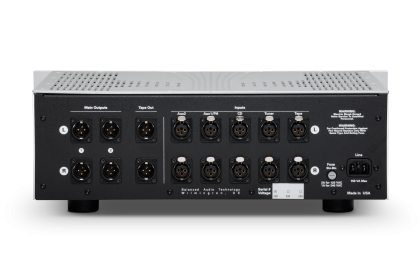

TRANSFORMER-COUPLED

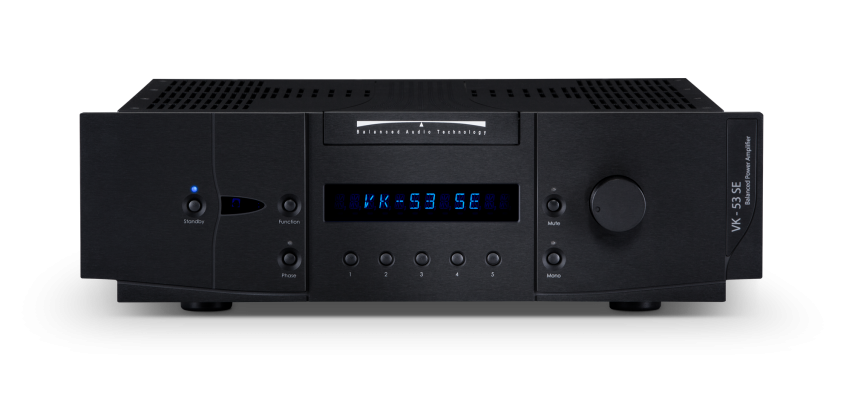

OUTPUTS FOR UTMOST MUSICAL PURITY, COHERENCY The VK-53SE is the finest
single-chassis preamplifier ever offered by Balanced Audio Technology. It
features a transformer-coupled, high-current, single gain-stage topology. The
transformer-coupled outputs catapult the performance of this fully balanced,
zero-feedback design to a higher level. These transformers replace BAT’s
venerable Six-Pak of output capacitors with custom-designed amorphous core
output transformers. Each is encapsulated within a mu-metal shield for the
ultimate in signal purity and noise isolation. Electrically, the custom
transformers significantly improve the VK-53SE's ability to drive low-impedance
loads. Sonically, they offer greater dynamics, transparency, top-to-bottom
extension, and a more coherent, organic portrayal of music.
FIRE IT UP: EIGHT 6H30 SUPERTUBES UNDER THE HOOD
More than a decade ago, BAT introduced the world to the 6H30 SuperTube. The
VK-53SE continues to proudly use eight 6H30 SuperTubes to form an
extraordinarily high-current, low-impedance drive capability. As BAT wrote upon
introduction, “comparing the 6H30 tube to a standard 6922 is like comparing a
Formula 1 race car to a family sedan.” In the VK-53SE, the signal is effectively
transmitted through only one gain stage. The UnistageTM circuit provides the
ultimate simplicity of amplifying the incoming signal only once, while using no
global feedback to double back on the straight-through signal integrity.
USER-FRIENDLY INTERFACE AND CUSTOM-TAILORED OPTIONS Boasting one of the best and
most flexible user interfaces in the high end, the VK-53SE features myriad
customizable options ranging from dimming to fading and source-naming. The
VK-53SE can also be fully upgraded to the Rex II preamplifier. And, you can
always get the volume just right. It employs a proprietary electronic shunt
volume attenuator that offers 140 steps of 0.5dB resolution. Discrete metal film
resistors bleed the unused signal to ground. From the deepest bass, to
extraordinary dynamics, as well as a greater sense of layered transparency, the
VK-53SE is your new reference.VK-53SE Preamplifier Inputs: 5 XLR Output
Impedance: 200ΩOutputs - Main: 2 XLR Noise (unweighted): -110dB Outputs - Tape:
1 XLR Distortion at 2V output: 0.005% Maximum Gain: 18dB Maximum Output Signal:
40V Global Feedback: None Absolute Polarity: Switchable Volume Control
Resolution: 0.5dB Power Consumption: 250VA Volume Control Number of Steps: 140
Dimensions: 19" x 5.75" x 15.5" Frequency Response: 2Hz to 200kHz Weight: 45lb.
Input Impedance (minimum): 100kΩ Tube Complement 8x 6H30


BAT
REX
ll
Offerta
€. 18.700,00

BAT’S

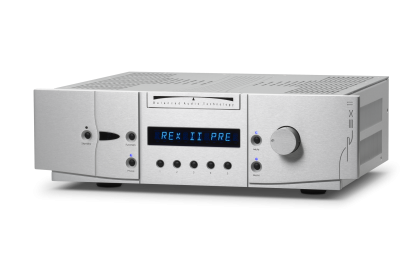

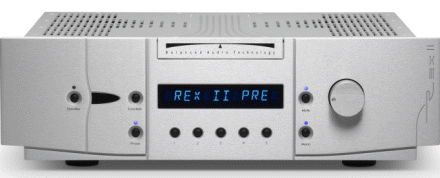

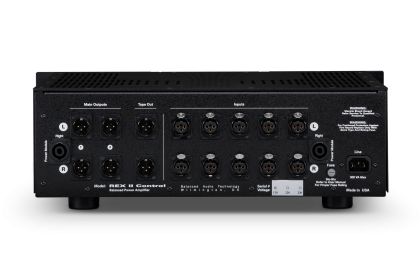

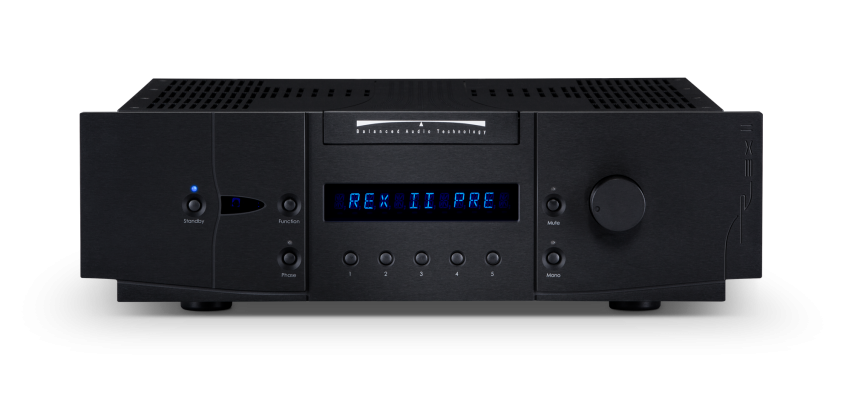

PINNACLE COMPONENT: PURIST DESIGN WITHOUT PEER The culmination of nearly two
decades of design, the fully balanced REX II preamplifier represents the
pinnacle of Balanced Audio Technology¹s purist approach to building a statement
control center without peer. Featuring a vacuum-tube power module and separate
control module, this groundbreaking two-box component features a
transformer-coupled output stage (aka T-REX). The latter replaces BAT¹s Six-Pak
of output capacitors with custom-designed amorphous core output transformers.
Sonically, they offer greater dynamics, transparency, top-to-bottom extension,
and a more organic portrayal of music. Easy to use, the REX II boasts an
incredible user interface and myriad customizable options. And with the REX II¹s
proprietary electronic shunt volume attenuator, you can always get the volume
just right. TRADEMARKED

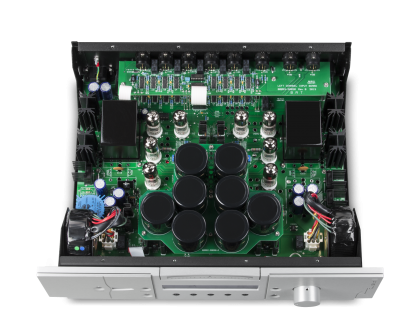

UNISTAGE DESIGN ANCHORS CONTROL MODULE The signal in the REX II is transmitted
through only one gain stage. The UnistageTM circuit provides the ultimate
simplicity of amplifying the incoming signal only once, while using no global
feedback. Eight 6H30 SuperTubes in the Control Module achieve an extraordinarily
high-current, low-impedance drive capability. Indeed, REX II would need 32 6922
tubes to offer the same current delivery! But BAT doesn’t stop there. Imagine
the robust nature of a vacuum-tube power supply designed to support this level
of instantaneous current delivery, and you have a better idea of the REX II’s

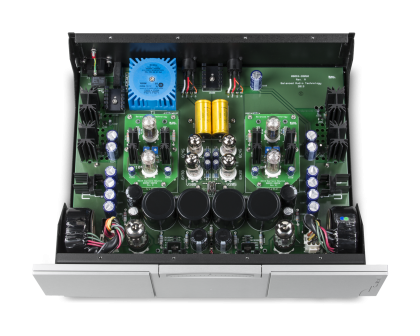

peerless excellence.VACUUM-TUBE POWER MODULE To support the Control Module¹s
signal-handling needs, the separate REX II Power Module contains ten vacuum
tubes supported by two, large toroidal transformers in a true dual-mono
configuration. Vacuum-tube rectifiers and user-configurable current sources‹as
well as vacuum-tube AC shunt regulators‹provide further levels of refinement.
The final filtering stage uses BAT’s newest SUPER-PAK of custom oil capacitors,
the very same used in the Control Module's SUPER-PAK MORE THAN JUST A PREAMP
WITH AN EXTERNAL POWER SUPPLY Contrary to its external appearance, the REX II is
not simply a preamplifier with an external power supply box. This conventional
type of partition suffers from several well-known drawbacks, foremost being the
high-impedance nature of the remote power supply. In the REX II, the control box
offers the benefit of a low-impedance local power supply while also preserving
an upgrade path for VK-53SE preamplifier owners. BAT designed each box to
contain the complete power supply for one polarity. And yes, the size of each
individual supply compares that found in many power amplifiereEXTREME
PERFORMANCE, ENGROSSING MUSICAL REPRODUCTION Easy to operate out of the box, REX
II is just as easy to customize. Name your sources. Fix your volume for the MOVI
input alone to allow easy master control of your home theater system from your
pre/pro remote. Select a fixed balance adjustment for the phono input to
accommodate an older phono cartridge. Possibilities are seemingly endless. Most
importantly, REX II provides a level of transparency, dynamic scale, and
textural insight that is simply beguiling. This 18-tube statement design lets
you hear and feel the power, finesse, and beauty of music in ways you’ve never
imagined.REX II Preamplifier Inputs: 5x XLR Distortion
at 2V output: 0.005%Outputs - Main: 2x XLR Maximum Output Signal: 50VOutputs -
Tape: 1x XLR Absolute Polarity: Switchable Maximum Gain: 18dB Tube Complement -
Control Module: 8x 6H30 Global Feedback: None Tube Complement - Power Module: 2x
5AR4, 4x 6C19, 2x 6H30, 2x 6C45 Volume Control Resolution: 0.5dB Power
Consumption - Control Module: 220VA Volume Control Number of Steps: 140 Power
Consumption - Power Module: 250VA Frequency Response: 2Hz to 200kHz Dimensions -
Each Module: 19" x 5.75" x 15.5" Input Impedance (minimum): 100kΩ Weight -
Control Module: 40lb. Output Impedance: 200Ω Weight - Power Module: 36lb. Noise
(unweighted): -100dB



BAT
VK56
Offerta
€. 9.800,00

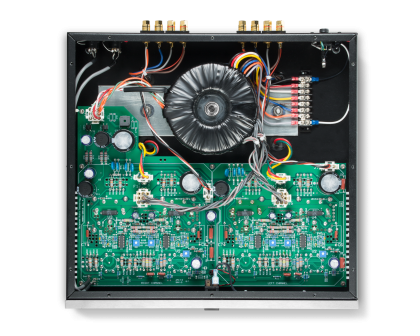

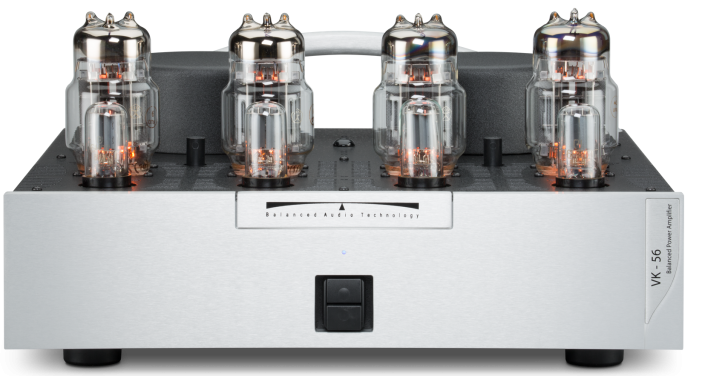

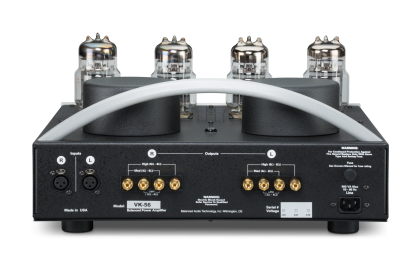

Compact

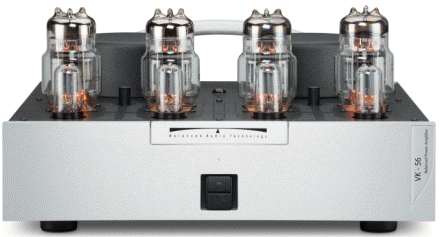

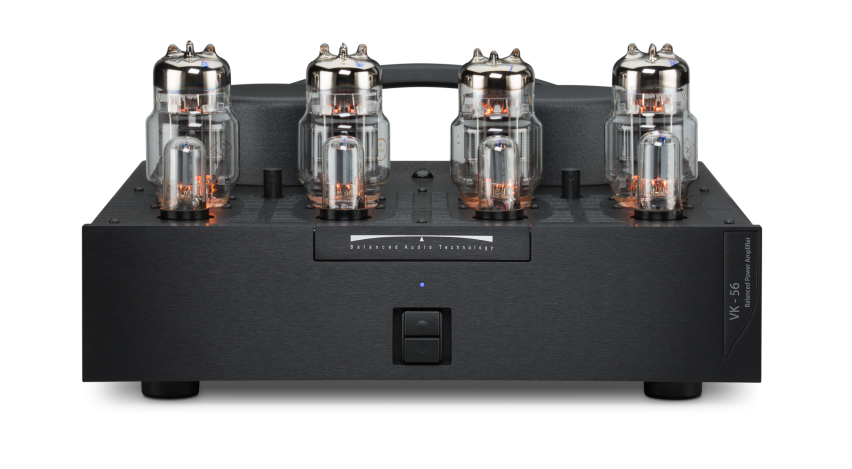

Chassis, Outstanding Performance, Stunning Affordability The Balanced Audio
Technology VK-56 represents the meticulous application of modern design
principles to the development of a compact, affordable, and supremely
easy-to-use vacuum-tube power amplifier that sets a new standard for musicality
in its class. The result is a unique combination of fully balanced, all-triode
design topology, automatic biasing of individual output tubes, and a marvelously
simple upgrade path to monoblock operation—all in a chassis more compact than
any previous BAT tube amplifier design. In addition, VK-56 is available with a
silver color option that incorporates a silver front faceplate and matching rear
arch. Features the Same High-Current Tube as BAT’s Flagship Power Amplifier Many
BAT customers asked for a smaller and more affordable tube amplifier that meets
our rigorous design standards while providing the breath of life to music
characteristic of the BAT sound. VK-56 is the answer to their dreams. By using
the same high-current dual-triode 6C33C-B tube employed in BAT’s flagship REX II
power amplifier, VK-56 (55Wpc stereo, 110Wpc monoblock configuration) delivers
the high-current kick required to drive even difficult low-impedance speaker
loads. You can simply choose the stereo or monoblock version based upon your
choice of speaker and room size. VK-56 can be upgraded to VK-56SE status at any
time. ntelligent Auto-Bias Design Makes Operation a Cinch This power amplifier’s
advanced engineering eliminates the traditional headache associated with most
vacuum-tube power amplifiers—specifically, the constant need to set and readjust
the proper bias of the output tubes—as VK-56 features an intelligent automatic
bias design that adjusts for changing line voltage and aging tubes, with each
output tube having its own dedicated bias circuit. The auto-bias circuit also
ensures your VK-56 sounds wonderful within the first few minutes of listening.
You’ll immediately experience the midrange clarity, power, and dynamics that
have made BAT one of the most respected brands in high-end audio. All you need
to do is listen!


BAT
REX
ll
Offerta
€. 24.00,00

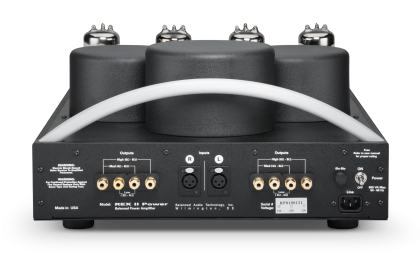

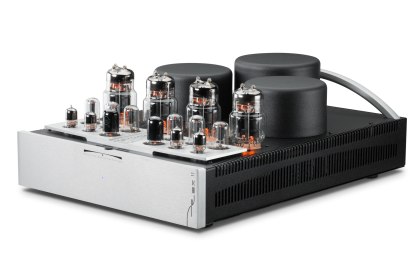

PLUG-AND-PLAY

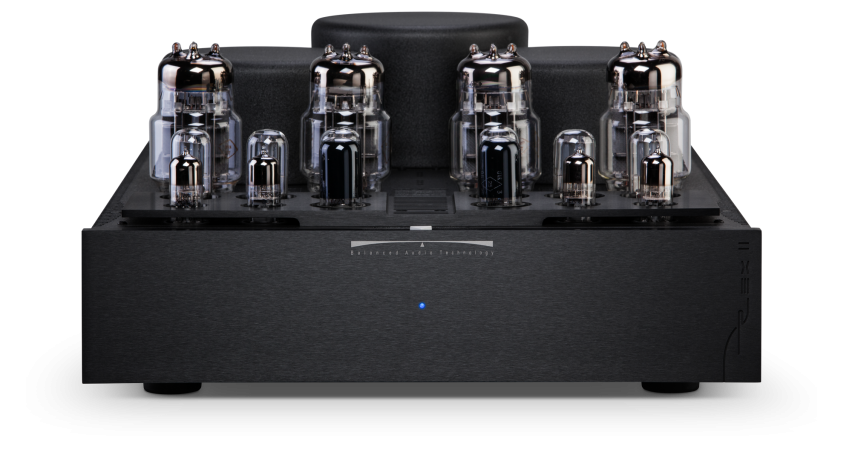

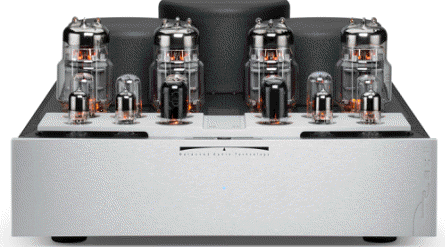

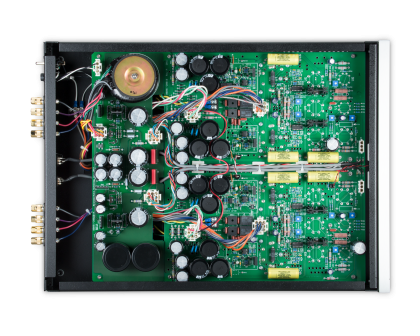

SIMPLICITY IN A NO-COMPROMISE DESIGN The all-triode REX II power amplifier
represents a technological tour de force of modern engineering applied to
vacuum-tube power-amplifier design. From the plug-and-play simplicity provided
by its auto-biasing and electronic protection circuits, to the palpable illusion
of recreating the original musical event in your home, the REX II combines
high-power output, beautiful midrange texture, and great extension at the
frequency extremes. Delivering a robust 80 watts per channel in the stereo
version or a compelling 160 watts per channel as a monoblock—and fully
symmetrical from beginning to end—it is a design without compromise. A TRULY
DIFFERENT APPROACH Think of the REX II as two single-ended amplifiers per
channel, with their waveforms summed at the output transformer. No direct
current flows through the latter, allowing the output transformer to be a truly
wide-bandwidth design while reducing low-frequency distortion. REX II extends
the benefits of vacuum-tube current sources to include both the first and second
gain stages of the circuit design. Hence, the linearity of the gain stage
improves, the adjustments for the first and second gain stages become
independent, and the tube current source components operate at a lower stress
level. You can also fine-tune the sound to best meet your individual needs.
INTELLIGENT AUTO BIAS AND ELECTRONIC PROTECTION The REX II’s advanced design
eliminates the constant need to set and readjust the proper bias of the output
tubes. An intelligent automatic bias circuit adjusts for changing line voltage
and aging tubes. For convenience, LED indicators show the status of each
individual output tube. BAT further extends the plug-and-play nature with a
novel “fuse-less” protection circuit, which eliminates the power-supply rail
fuses to provide both a more refined sonic performance and user-friendly
experience. All you have to do in the event of an output tube being
over-stressed is to flip the power switch. No tubes to bias. No tube fuses to
replace. It doesn’t get any easier! REX II Amplifier Output per channel at
8Ω/4Ω 80W / 80W Conversion to Mono? Factory or Wire Kit Output in Mono
Configuration 8Ω/4Ω 160W / 160W Frequency Response 5Hz to 200kHz THD at full
power 3.0% Input Impedance - stereo version 215 kΩ Input Impedance - mono
version 108 kΩ Gain (Nominal into 8Ω) 26dB Tube Complement 4x6H30, 6x6SN7,
2x6V6, 4x6C33C-B Number of Power Cords 1 Remote Control No Power Consumption (Idle/Full
Power) 500W/1000W Dimensions (Inches) 17"W x 9"H x 24"D Dimensions (mm) 431W x
229H x 610D Weight 100 Lbs



BAT
VK225 SE
Offerta
€. 11.800,00

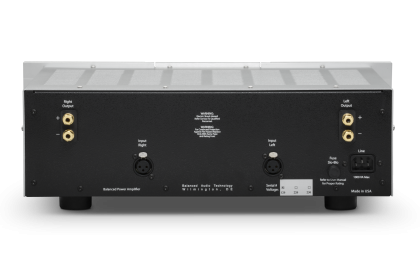

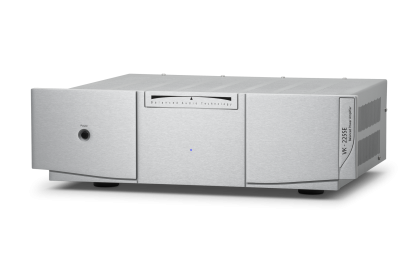

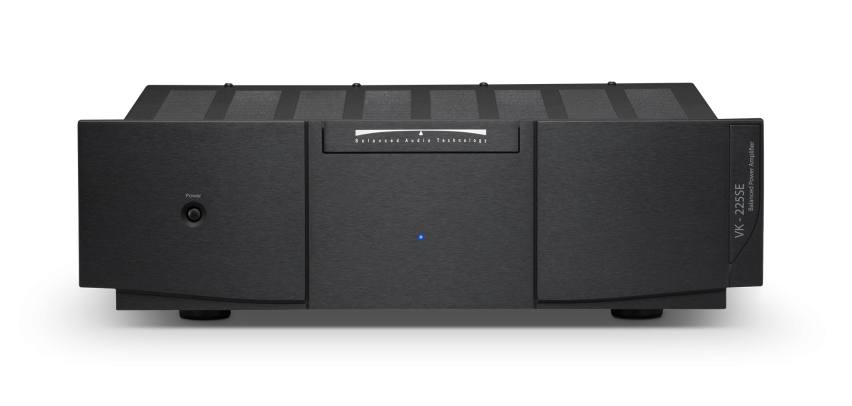

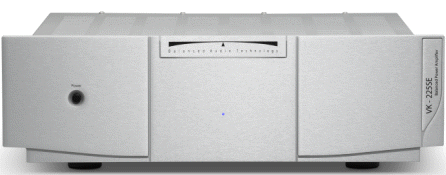

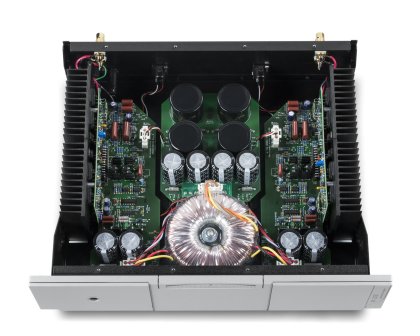

SECOND-GENERATION
SUPERPAK ADDS UNCOMMON SOULFULNESS, ENGROSSING DEPTH Boosted by the addition of
Balanced Audio Technology’s second-generation SuperPak, the VK-225SE power
amplifier reproduces music’s inner beauty with uncommon soulfulness and engaging
depth. Pairing uninhibited sonics and authoritative power in a compact
design—and based the award-winning topology in BAT’s reference VK-6200
multichannel power amp—it delivers 150 watts per channel into eight ohms and 300
watts per channel into four ohms. VK-225SE confidently drives any speaker and
touts an extremely low noise floor. Lending unstrained ease to the most
demanding recordings, VK-225SE’s superb dynamic control shines even on difficult
loads. ADVANCED POWER SUPPLY, CLASS AB
OUTPUT STAGE, EASY OPERATION VK-225SE’s revised power supply incorporates the
same second-generation oil-filled capacitors used in every BAT flagship product.
They increase the high-quality filtering capacity by an order of magnitude over
the first-generation oil parts. Listeners benefit by hearing a dramatic lowering
of the noise floor and a grain-free, textured, and sublimely refined portrayal
of harmonics. VK-225SE also features carefully selected bipolar transistors in
its discrete Class AB output stage. Each channel uses six high-power bipolar
output devices, boasting a combined rating of 1380 watts. A sophisticated
protection circuit ensures trouble-free operation. HEAR GORGEOUS MUSICAL DETAIL
AND THE DEEP SILENCE BETWEEN NOTES A fully balanced input stage, zero global
feedback, and discrete components give VK-225SE sought-after sonic advantages.
Its circuit topology achieves ultra-wide bandwidth, lowers noise, and minimizes
stress on the power supply. The second-generation SuperPak adds to the textural
finesse and tonal purity. As such, VK-225SE excels at reproducing the rich
colors and powerful emotions of your favorite performances. It conveys both the
finest musical detail and deep silence between the notes. These attributes
combine with VK-225SE’s superb dynamic ability, yielding outstanding virtues
seldom found in such a compact and affordable design. All you need to do is
listen! VK-225SE Amplifier Output per channel at 8Ω/4Ω 150W / 300W Frequency
Response 2Hz to 150kHz THD at full power 0.2% Input Impedance 100 kΩ balanced
Power Consumption (Idle/Full Power) 50W/1500W Dimensions (WHD) Inches 19"
x 5.5" x 14.5" Weight 41 Lbs


BAT
VK655
SE
Offerta
€. 22.900,00

PURIST

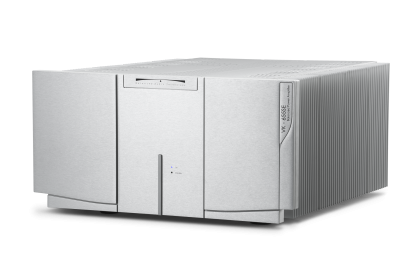

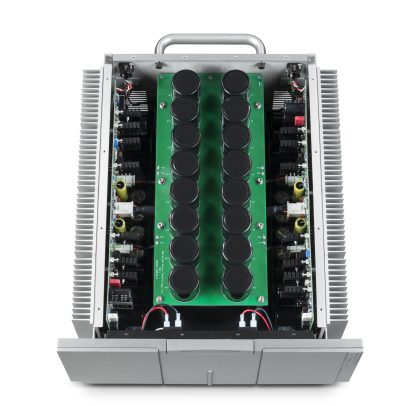

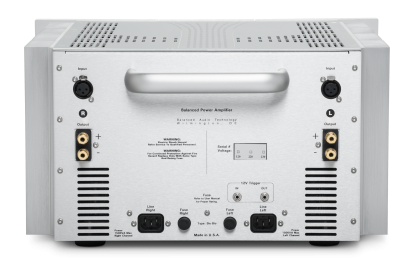

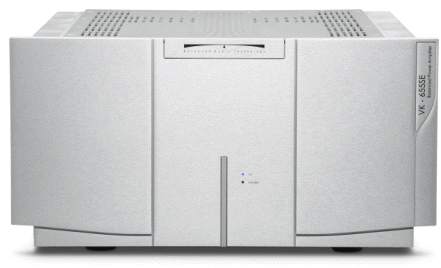

APPROACH, TRUE DUAL-MONO DESIGN The fully balanced VK-655SE power amplifier is
the ultimate expression of BAT amplifier engineering. Available in stereo or
monoblock configuration, it features only two gain blocks in a high-power, zero
feedback, and purely symmetrical design. A true dual-mono component featuring
independent channel assemblies, power transformers, and separate power cords for
the left and right channels, the purist approach-based VK-65SE yields maximum
soundstage width and depth. Finite micro- and macro-dynamics are reproduced with
ease. A revised power supply incorporates the same second-generation oil-filled
capacitors used in BAT’s flagship REX II preamplifier, dramatically lowering the
noise floor and portraying grain-free, extra-refined harmonics.
MASSIVE POWER: ENOUGH ENERGY TO LIFT MOST
SPEAKERS OFF THE GROUND The VK-655SE’s elegant signal path follows BAT’s purist
approach of using zero negative feedback to achieve the goals of wide bandwidth
and circuit linearity. Its circuit is based entirely on N-Channel MOSFET devices.
A high-current design that offers a robust 600 watts per channel into a four-ohm
load, the VK-655SE easily drives most any speaker ever made. The monoblock
version doubles these figures, and contains a whopping 1800 joules of energy
storage—enough to lift most speakers over one meter off the ground! High power—combined
with high-energy storage—produce the dynamic sound that is a BAT hallmark
SUBLIME MUSIC REPRODUCTION: SPEED, SLAM, DYNAMICS Dynamic responsiveness remains
the recognizable difference between live and reproduced music. The VK-655SE
couples quickness, slam, and dynamic range with an extended, deep soundstage and
an exquisite fidelity to the timbre and texture of instruments and voices.
Indeed, the sound of the VK-655SE and REX II power amplifiers converge upon the
same ultimate goal: sublime reproduction of music independent of the devices
employed. By utilizing only the highest-grade parts throughout, BAT allows the
VK-655SE to yield supremely transparent insight into any music you play. It’s
time you experienced such beguiling sonics for yourself.
VK-655SE Amplifier Output per channel at
8Ω/4Ω 300W / 600W Conversion to Mono? Factory OnlyOutput in Mono Configuration
8Ω/4Ω 400W / 700W Frequency Response 3Hz to 250kHz THD at full power 0.2% Input
Impedance - stereo version 100 kΩInput Impedance - mono version 50 kΩ Gain (Nominal
into 8Ω) 26dB Tube Complement n/a Number of Power Cords 2 Remote Control 12V
Trigger Input & Output Power Consumption (Idle/Full Power) 400W/2000WDimensions
(WHD) Inches 19" x 9.5" x 23.5" Dimensions (WHD) mm 483 x 242 x 597 Weight 120
Lbs



BAT
P6
Offerta
€. 4.825,00

Versione se
7.276,00 euro

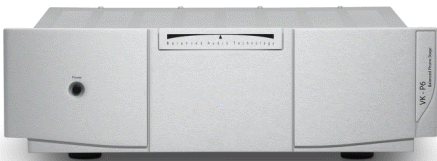

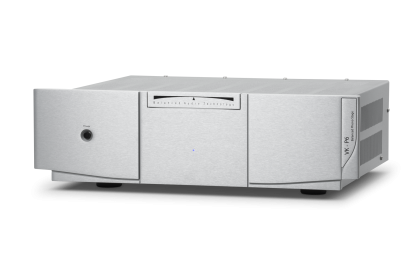

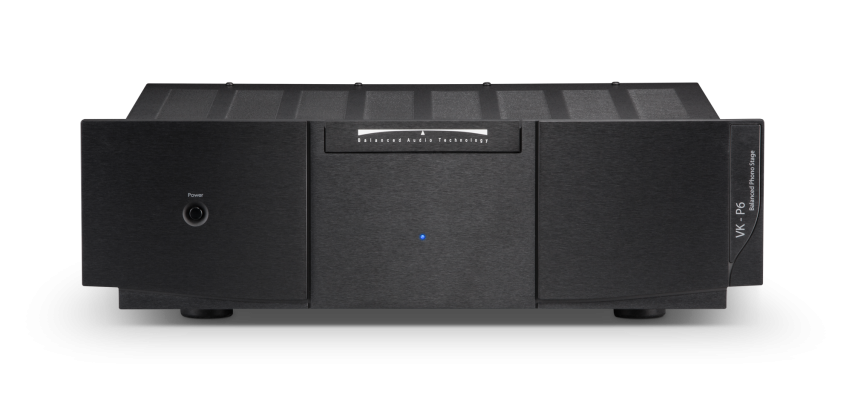

GREATLY
EXTENDED DYNAMIC RANGE, EXQUISITE HARMONIC DETAIL Available for a lower price
than the model it replaces, Balanced Audio Technology's VK-P6 phonostage
delivers an astonishing combination of performance and value. Incorporating many
of the exact engineering elements found in BAT's reference VK-P12 Series, VK-P6
employs ten tubes in a dual-mono, zero-feedback topology. Impregnable
construction and enormous energy reserves are matched by extensive flexibility
in cartridge loading. This spectacular audiophile component touts greatly
extended dynamic range and the ability to resolve harmonic and reverberant

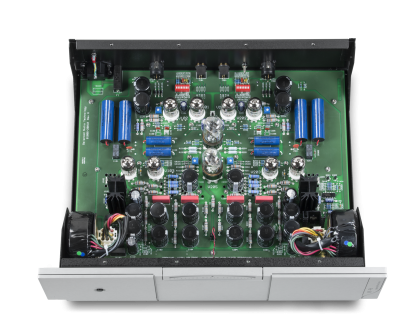

detail in the quietest passages. TWO MASSIVE TOROIDAL POWER TRANSFORMERS-SAME AS
THOSE IN FLAGSHIP REX II Built for decades of enjoyment, the VK-P6 uses the same
heavy-duty chassis as BAT’s top-of-the-line products. Its dual-mono topology
starts with two massive toroidal power transformers—the same parts used in BAT's
flagship REX II preamplifier. From there, the power goes to massive energy
storage reserves worthy of many power amplifiers. The meticulous layout of the
large circuit board provides the shortest-possible signal path. And the ten-tube
topology is derived from that found in the VK-P12 phonostage. Upgraded signal
capacitors are used throughout. Aesthetically, the industrial design seamlessly
blends with all components—particularly those of the BAT family. And, true to
BAT tradition, VK-P6 is fully upgradeable to the VK-P6SE. YOUR LPs WILL FINALLY
SOUND THE WAY THE ENGINEER INTENDED The VK-P6 employs a differential RIAA
network, permitting ease of adjustment and improved common mode noise rejection.
Completely passive, this circuit has fewer components than a more traditional
implementation. The benefits translate into improved matching of the RIAA curve
to specification. With the BAT Flying RIAA network, you can be assured that all
of your records sound the way that the recording engineer intended. Vacuum-tube
current sources further improve the linearity and yield a more open, textured
sound. Dual 6SN7 vacuum tubes act as current sources for the second gain stage.
Yes, BAT thought of everything. All you need to do is listen. VK-P6

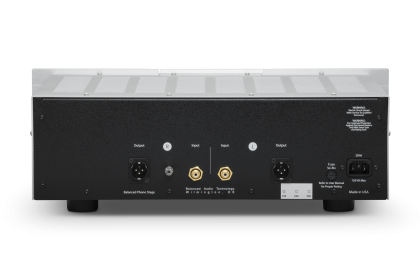

Phonostage Inputs 1x RCA Weight-unpackaged 36 lb(16kg) Outputs 1x XLR Gain
Signal To Noise Low Gain 50dB Low Gain 71dB High Gain 55dB High Gain 73dB
Tube Complement 8x 6922, 2x 6SN7 Cartridge Loading: Polarity Switch:
Resistance Selectable 100Ohm to 47kOhm Selectable - 0 to 180 NA Capacitance
Selectable 100pF to 1000pF Power Supply Energy Storage 140 joules Power
Consumption 150VA Dimensions: 19"Wx5.75"Hx15.5"D (48cm W x 15cm H x 40cm D)


BAT
P12
v2010
Offerta
€. 9.600,00

Versione se
12.000,00 euro
Versione spe
15.250,00 euro

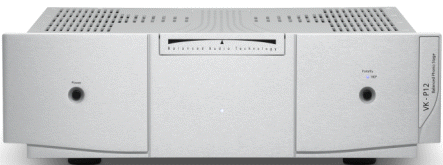

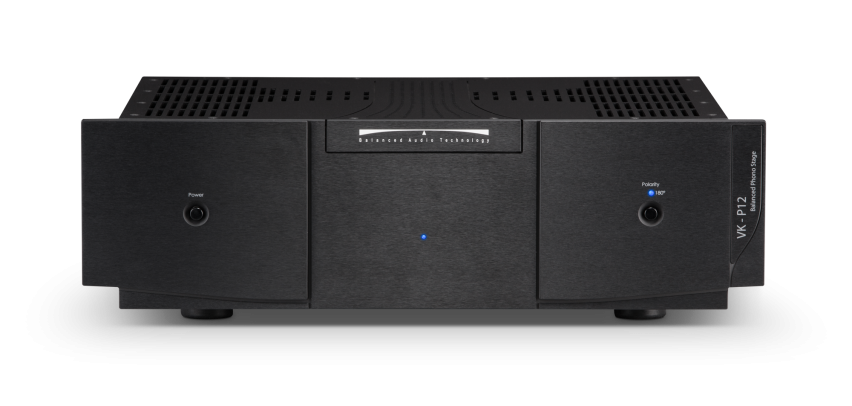

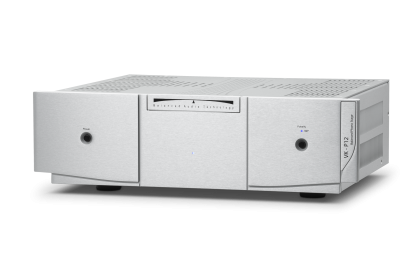

THE
FOREFRONT OF ANALOG PLAYBACK TECHNOLOGY mDual-mono construction, balanced inputs,
vacuum-tube current sources, enormous energy reserves, and a massive power
supply push the VK-P12 to the forefront of the world’s finest phonostages.
Complementing the unit’s all-tube zero-feedback design, a unique Flying RIAA
circuit maximizes accuracy, brings the benefits of fully differential operation
to the critical equalization stage, and delivers standard-bearing fidelity to
the original recorded signal. The end result is a circuit that unlocks hidden
performance in virtually any cartridge. BUILT-IN STEP-UP TRANSFORMERS, MAMMOTH
ENERGY RESERVES HANDLE ANY CARTRIDGE Low-output moving-coil cartridges are a
forte of VK-P12. Most are easily handled easily by the phonostage’s direct mode.
High-quality, built-in step-up transformers can be either used for cartridges
with even lower output or to obtain an even lower noise flow. Internal switches
allow you to adjust cartridge loading for capacitance and resistance, and
provide low and high settings for preamplifier gain. Signal polarity is
effortlessly changed via a front-panel balanced phase reversal switch. And you’ll
never worry about energy. The VK-P12’s energy reserves exponentially exceed
those found in competing products. By most any measure, this phonostage could be
a sizeable power amplifier. Want more? Per BAT tradition, VK-P12 is fully
upgradeable to the SE and SuperPak versions. SUPERLATIVE BUILD QUALITY,

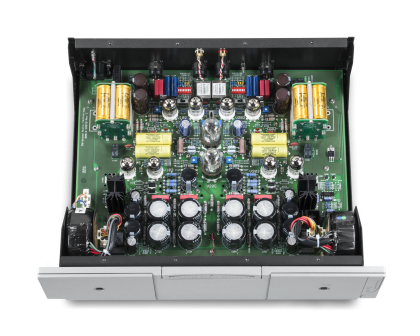

BREATHTAKING PERFORMANCE True to BAT tradition, VK-P12 is built to a spec that
ensures it will be passed onto future generations. Custom oil-filled signal
capacitors are used throughout. Power-supply regulation is handled through
vacuum-tube constant current sources. Pure, un-plated copper is utilized for all
circuit board traces. Of course, all the effort spent on design and construction
would be for naught if the VK-P12 yielded anything less than a breathtaking
transcription of the music on your vinyl. And it’s in the LP grooves where the
VK-P12 establishes its true pedigree. Experience it, and unlock the glory of
vinyl music reproduction that few music lovers have ever imagined let alone

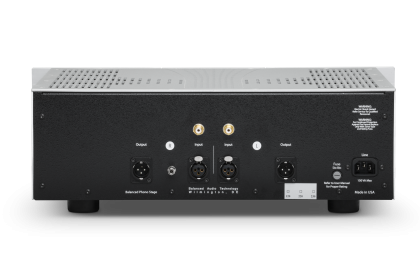

enjoyed. VK-P12 Phonostage Inputs: 1x RCA + 1x XLR Weight: 40 lb. (19kg)
Outputs: 1x XLR Gain at 1kHz: Signal to noise ratio: Direct - Low
45dB Direct - low 73dB Direct - High 60dB Direct - high 76dB Step-up low 65dB
Step-up low 86dB Step-up high 80dB Step-up high 93dB Cartridge loading: Absolute
Polarity: Switchable Resistance(ohms) Selectable from 100 to 47k Tube Compliment:
8x 6922 2x 6SN7 Capacitance (pf) Selectable from 0 to 1000 Power supply energy
storage: 200 joules Power consumption: 150 VA Dimensions: 19"x5.75"x15.5" (48 cm
x 15 cm x 40 cm)


Legenda istruzioni
Clicca
per qui per vedere : FOTO PRODOTTO
Clicca
per qui per vedere : ISTRUZIONI PRODOTTO
Clicca
per qui per vedere : CATALOGO,PROVA RIVISTE SPECIALIZZATE PRODOTTO
Nota
bene *
Per ordinare o avere
gli ultimi prezzi aggiornati telefona al
0174 670100
o invia un E-mail a
info@newaudio.it
*I prezzi indicati
sono di listino ufficiale delle case produttrici ,nel
caso di diffusori si riferisce al prezzo del
singolo diffusore per offerte ed eventuali
promozioni telefonare o inviare e-mail.
*Il
presente listino sostituisce ed annulla ogni precedente. Le caratteristiche e i
prezzi indicati possono variare senza preavviso telefonare o inviare un
e-mail per ulteriori domande e conferme sui prezzi sopra riportati.
*Tutti i marchi citati nel presente listino sono di proprietà e
registrati alle rispettive Case Produttrici
*Prezzi
franco
nostro magazzino

|
