SUDGEN
A21A SIGNATURE
Listino ufficiale
€. 2.695,00
Integrato 23
Watt su 8 Ohm (Pura Classe A)
OPTIONAL scheda phono
A21A MM/MC 249,00 euro

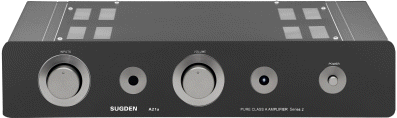

A21 Signature Line and Integrated Amplifier The
Sugden pure class A design provides affordable high-end performance from a
beautifully engineered single box integrated amplifier. Compact in size with a
simple but stylish design, the A21 is possibly the only amplifier you will ever
need. With many of the original A21’s still in daily use after fifty years, it
could also last a life time. Providing a large soundstage and depth to all types
of music, the A21 is an amplifier you can listen to for hours without fatigue.
The single ended circuit provides impressive dynamics and incredible bass.
Facilities Inputs Five line level (four on A21 Integrated) Optional mm/mc phono
Outputs One pair of stereo multi-way binding posts Pre-out (variable), tape out
(fixed) Remote Control Volume up/down Earth terminal Specifications
Line Input Sensitivity 170mV for max. outPhono Input Sensitivity 3mV/mm, 0.2mV/mc
for max. output Phono Loading MM 47K MC 100 Ohm Power Output 23 Watts into 8
Ohms Frequency Response +/-1dB 10Hz-20kHz Bandwidth 6Hz-200kHz Signal to Noise
>83dBGross Weight (packed) 11kgs Dimensions 92 x 430 x 350mm (hwd)
SUDGEN
A21 SE SIGNATURE Listino ufficiale
€. 3.885,00
Integrato 36
Watt su 8 Ohm (Pura Classe A)

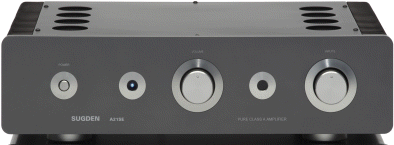

A21 Signature Line and Integrated Amplifier The
Sugden pure class A design provides affordable high-end performance from a
beautifully engineered single box integrated amplifier. Compact in size with a
simple but stylish design, the A21 is possibly the only amplifier you will ever
need. With many of the original A21’s still in daily use after fifty years, it
could also last a life time. Providing a large soundstage and depth to all types
of music, the A21 is an amplifier you can listen to for hours without fatigue.
The single ended circuit provides impressive dynamics and incredible bass.
Facilities Inputs Five line level (four on A21 Integrated) Optional mm/mc phono
Outputs One pair of stereo multi-way binding posts Pre-out (variable), tape out
(fixed) Remote Control Volume up/down Earth terminal SpecificationsLine
Input Sensitivity 170mV for max. out Phono Input Sensitivity 3mV/mm, 0.2mV/mc
for max. output Phono Loading MM 47K MC 100 Ohm Power Output 23 Watts into 8
Ohms Frequency Response +/-1dB 10Hz-20kHz Bandwidth 6Hz-200kHz Signal to Noise
>83dB Gross Weight (packed) 11kgs
SUDGEN
MASTERCLASS
IA4
Listino ufficiale
€. 6.955,00
Integrato 33
Watt su 8 Ohm (Pura Classe A)
Masterclass

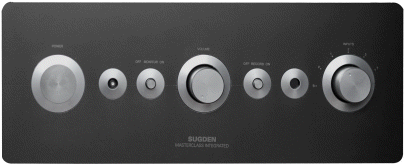

IA-4 Integrated Amplifier The IA-4 is our flagship and most popular integrated
amplifier. Weighing a substantial 20 kilos the IA-4 has a purposeful look and
impressive build quality. Plenty of input and output facilities are on offer
including a high quality phono stage. The class A power output circuit has been
upgraded from the A21 series with a larger power supply and improved soothing
and output capacitors. Gold plated circuit boards, full relay switching and a
precision input selector switch offer further detailing. The pre-amplifier
section of the IA-4 is a bespoke design, with surprising clarity and detail. The
most noticeable feature is the ability to create a large performance with depth
and height on any type of music. Facilities Inputs Three line level, tape, MM
phono, balancedOutputs Variable pre-out, fixed out, loudspeaker out Volume
Control Remote control RC5 compatible Tape Monitor and record off
Specifications Line Input sensitivity 125mVPhono Input Sensitivity 2mV (MM)Power
Output 33 Watts per channelFrequency Response +/-1dB 14Hz-200kHz Bandwidth
6Hz-300kHz Signal to Noise >84dB Gross Weight (packed) 20kgs Dimensions 165 x
430 x 440mm (hwd)
SUDGEN
A21STAGE 2
Listino ufficiale
€. 846,00
Pre Phono MM/MC

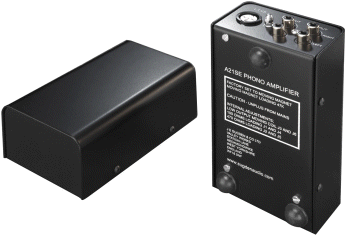

A21SE Stage Two Phono Amplifier There are two dedicated phono amplifiers in the
Sugden range and both are borne from our passion for vinyl. The Stage Two offers
exceptional value for money with facilities to cater for both MM and MC
cartridges. The design is a two box system separating the power supply from the
amplifier. The phono amplifier has fixed loading for MM and 100 and 470 Ohm
selection for MC. Our design criteria was to produce a product that was as
neutral as possible, retaining a faithful and enjoyable analogue sound.
Facilities Inputs Moving magnet, Moving coilLTVS power inOutputs Fixed line
level outputGain Adjustment Internal selection for MM or MC Load Adjustment
Internal for MC 100 and 470 Ohms MM fixed load 47k Earth Terminal Screw type
External Power Supply Mains powered Specifications Input Sensitivity MM 3.0mV
MC 0.15mV Output 350mV Frequency Response +/-1.5dB 20Hz-20kHz Signal to Noise
>64dB Gross Weight (packed) 2kgs Dimensions Phono amplifier 60 x 140 x 77mm (hwd)
Power supply 50 x 140 x 77mm (hwd)
SUDGEN
MASTERCLASS
PA4
Listino ufficiale
€. 2.910,00
Preampli Stereo
(Pura Classe A)
Masterclass

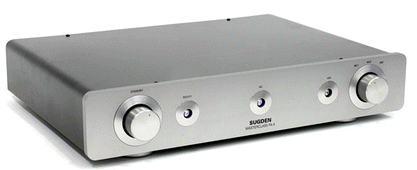

PA-4 Phono Amplifier Vinyl is a passion for some people and that includes the
designers at Sugden Audio. It is capable of the very finest musical experience
creating a unique presence and atmosphere. The PA-4 is one of the most rewarding
phono amplifiers available at real world prices helping you to enjoy your prized
record collection for years to come. The PA-4 comes fully loaded with two MC
inputs, an MM input and infinite loading options as it can be factory set to
match your cartridge exactly. The moving coil stage is a Class ‘A’ current
feedback circuit and the moving magnet amplifier a Class ‘A’ voltage feedback
circuit incorporating the RIAA correction in the negative feedback loop. DC
servo circuits enable direct coupling of the musical signal from moving coil
input to final output. The power supply, which Sugden considers an integral part
of the amplifier circuitry, is a ‘current shunt’ design with a specially
designed voltage regulator to prevent rising impedance with higher frequencies.
Constructed with components of exceptional quality, hand assembled on long-term
stability gold plated circuit boards; the resultant performance is a phono stage
of absolute transparency and natural sound. Facilities Inputs Two moving coil,
moving magnet Outputs Two line level Loading MC1 and MC2 Front Panel Controls
MC1, MC2, MM selector, standby, input indicator
Specifications Output 360mV Input Sensitivity Moving magnet 3.5mV Moving coil
0.15mV Loading Moving magnet 57K Moving coil 470 & 100 Ohms Frequency Response
+/-0.3dB 30Hz-30kHz Signal to Noise >70dB Gross Weight (packed) 6kgs Dimensions
110 x 430 x 330mm (hwd)
SUDGEN
MASTERCLASS
LA4
Listino ufficiale
€. 3.925,00
Preampli Stereo
(Pura Classe A)
SUDGEN
MASTERCLASS
HA4
 Listino ufficiale
€. 2.349,00
Preampli cuffia
Stereo (Pura Classe A)
Masterclass

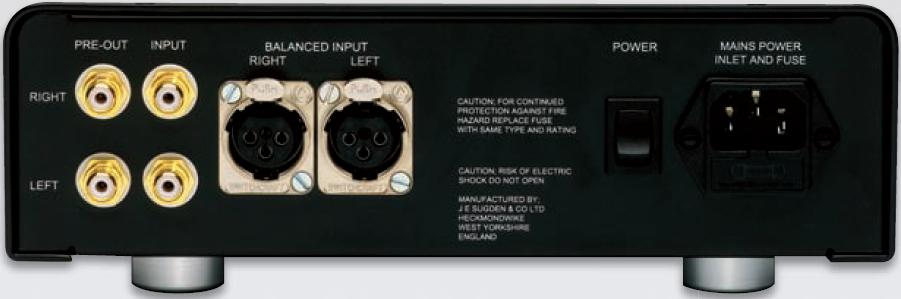

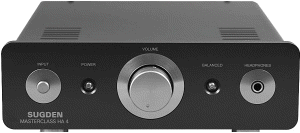

HA-4 Headphone Pre-amplifier The HA-4 is not only a state of the art class A
headphone amplifier, it can also be used as a compact high-end pre-amplifier.
The design is similar to our top of the range Sapphire DAP-800 and will drive
any dynamic headphone. Featuring Sugden VCV circuit and coupled to a pure class
A zero feedback mosfet output stage. The HA-4 is unconditionally load stable
with a discrete constant voltage series power supply. A high input impedance
ensures absolute minimal loss of signal with perfect current gain.
Facilities Inputs One line level input, one balanced input Outputs Stereo ¼”
jack socket, one line level output Volume Control Manual operation
Specifications Input Impedance 20k Ohms Gain 16dB Channel Separation >90dB
Frequency Response >0.3dB 20Hz-30kHz Signal to Noise >95dB Output Impedance 1
Ohm Gross Weight (packed) 6kgs Dimensions 80 x 250 x 310mm (hwd)
SUDGEN
MASTERCLASS
DAC 4
Listino ufficiale
€. 2.578,00
Masterclass

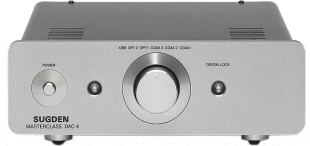

DAC-4 Digital to Analogue Converter The DAC-4 offers a well judged alternative
to the plethora of other DAC’s available in the current market. With sound
quality top of the list, our watchword ‘Rescuing music from technology’ could
not be more appropriate. Instead of accepting and using the latest digital
trends, we have produced a product meticulously engineered to play music. With
our own conversion circuits and data reformatting, a near analogue experience
can be enjoyed. The DAC-4 is without limitations and has no over sampling or
digital filtering. Facilities Inputs Three SPDIF coaxial, two SPDIF optical, One
USB typeB, Mains IEC socket Outputs One RCA stereo analogue One digital coaxial
Front Panel Controls Power switch, power lamp, input selector switch, digital
lock lamp Specifications Output 2.15 Volts Frequency Response
20Hz-20kHz +/- 1.5dB points Signal to Noise >80dB Gross Weight (packed) 5kgs
Dimensions 90 x 250 x 330mm (hwd) Digital Input SPDIF 16-24 bit word length,
with sample rates from 32 to 96kHz Power Consumption 12 Watts
SUDGEN
SHAPPIRE
DAP 800
Listino ufficiale
€. 5.497,00
Sapphire

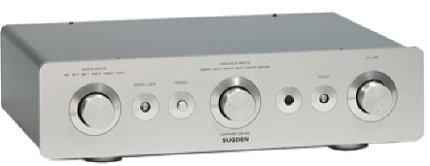

DAP-800 Digital Analogue Pre-Amplifier With an extensive range of input options,
the DAP-800 can be the control centre of your audio system. A total of six
analogue inputs and six digital inputs are available as well as two single ended
and one balanced output. The DAP-800 has been carefully designed to operate in
two separate domains, analogue and digital. For each circuit we use independent
power supplies throughout so in effect there is a separate DAC and analogue
pre-amp housed in a single chassis. The pre amplifiers analogue stage
incorporates a Sugden VCV circuit in its most advanced form. This circuit has a
high impedance input section, current gain stage which drives a folded cascode
stage into a Class A output stage. The folded cascode circuit facilitates a wide
bandwidth with maximum dynamics and low capacitive connectivity. This delivers a
sophisticated sound that is neutral and transparent. The digital section of the
DAP-800 incorporates the same unique digital to analogue conversion as our stand
alone DAC-4. Our experience in designing digital products now stretches over
twenty five years and we pride ourselves on the analogue natural sound we have
achieved. The DAP-800 has a number of advanced features. To reduce jitter and
control errors during play back there is a dedicated transceiver circuit, this
re-formats data prior to the digital to analogue converter. A unique conversion
method is employed without oversampling or filtering in the digital domain,
instead we chose an analogue filter resulting in very wide bandwidth capability.
The interface accepts most digital formats including a ‘plug and play’ USB input
for streaming music directly from a computer or dedicated music
streamer.Facilities Inputs Four line level inputs, one balanced input,
bypassDigital Inputs Three SPDIF coax, two SPDIF optical, one USB type B Word
length up to 24bit 96kOutputs Two line level outputs, one balanced output, tape
outputVolume Control Motorised remote control (analogue) RC5 compatible Mains
Power Switching Separate for analogue and digital circuits
SpecificationsInput Sensitivity 120mV for 1 Volt outMaximum Output 9
VoltsFrequency Response 0dB 15Hz-98kHzBandwidth 8Hz-125kHzSignal to Noise >85dB
Distortion <0.05% @ 1kHz, 1 Volt out Gross Weight (packed) 10kgs Dimensions 120
x 430 x 340mm (hwd)
SUDGEN
MASTERCLASS
FPA4
Listino ufficiale
€. 3.590,00
Finale Stereo 75
Watt su 4 Ohm (Pura Classe A)
Masterclass

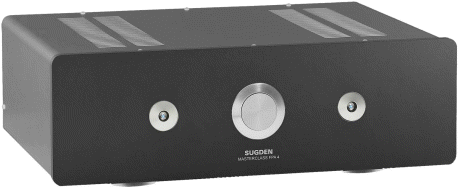

FPA-4 Power AmplifierThe FPA-4 power amplifier is the latest member of the
Sugden Masterclass Family. This output stage is of the classic Sugden pure class
A single ended design which has given musical satisfaction to thousands of
discerning music lovers over many years. The amplifier benefits from a
comparator and correction circuit so that errors which would occur in the power
stage, due to varying loads and distortion, are corrected to match the output of
the high impedance input amplifier. Whilst it is maintaining the signal
authenticity it is also increasing the load stability and forces the output
impedance to zero. The Amplifier with Sugden Error Correction has extremely low
open loop output impedance with a resultant high damping factor at quite high
frequencies. Coupling of the output of the Amplifier to its chosen speakers is
via a ‘soft connection’ protection board. It is a static contact switching board
using extremely low ‘on resistance’ power mosfets. These devices are timed on
and off to enable soundless connection to the speakers however sensitive. The
FPA-4 is an exciting new design that performs well above its modest price point.
Facilities Inputs Stereo line level, stereo balanced Outputs Stereo pair
multi-way locking binding posts Specifications Input Sensitivity 1Volt for
full output Power Output 25 Watts per channel both channels working Frequency
Response -0.3dB 18Hz-95kHz Bandwidth 10Hz-125kHz Signal to Noise >82dB
Distortion at 1 Watt 1kHz <0.04% Gross Weight (packed) 15kgs Dimensions 143 x
430 x 350mm (hwd)
SUDGEN
MASTERCLASS
SPA4
Listino ufficiale
€. 7.052,00
Finale Stereo 25
Watt su 8 Ohm (Pura Classe A)
Masterclass

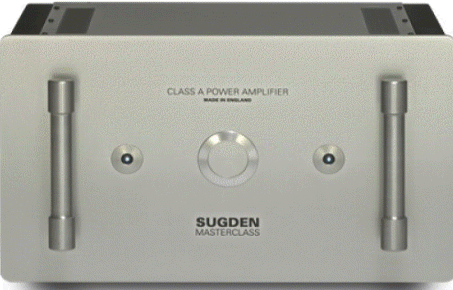

SPA-4 Stereo Power Amplifier & MPA-4 Balanced Mono Power Amplifier The
popularity of the Masterclass series has resulted in over seventeen years of
continuous production. Offering an excellent price/performance ratio it is easy
to see why it remains so successful. With an abundance of headroom, the MPA-4
mono power amplifiers deal easily with heavy complex music, allowing the low
level detail to be heard clearly and accurately. Boasting a fully balanced
circuit design, it can be the engine room of a fully balanced hi fi system. The
SPA-4 is a stereo version of the MPA-4 and uses the same class A circuit. The
only differences are power output and the additional flexibility of both single
ended and balanced inputs. Not every music lover can accommodate two substantial
power amplifiers in their listen space, so a single SPA-4 could be the solution.
One of the noticeable abilities of the SPA-4 is how well it works with smaller
loudspeaker designs as well as large ones. Control and soundstage are two key
elements of the SPA-4 making it a fine power amplifier.SPA-4 Facilities Inputs
Stereo line level, stereo balanced Outputs Stereo pair multi-way locking binding
posts Specifications Input Sensitivity 1Volt for full
output Power Output 75 Watts into 4 Ohms both channels working Frequency
Response +/-0dB 15Hz-30kHz Bandwidth -3dB points 2Hz-200kHz Signal to Noise
>85dB Gross Weight (packed) 25kgs Dimensions 250 x 430 x 350mm (hwd)
SUDGEN
SHAPPIRE
FBA 800
Listino ufficiale
€. 7.357,00
Finale Stereo 40
Watt su 8 Ohm (Pura Classe A)

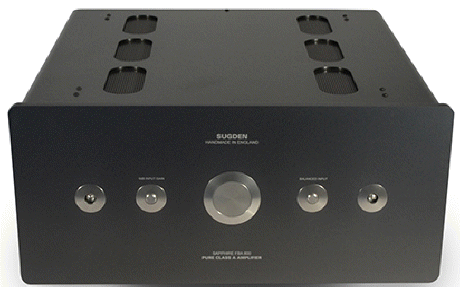

Sapphire FBA-800 Pure Class A Power Amplifier The
FBA-800 is our most advanced power amplifier. The floating bridge design
combines four 20 Watt amplifiers in a single stereo chassis and provides several
key benefits. Each channel consists of two amplifiers working as voltage
amplifiers driving an output stage of bridged power transistors. The advantages
are a low noise floor, better power output relative to the voltage rails (x2)
and with the fixed current of the class A mode, low output impedance and better
load tolerance. The Power amplifier is D.C. coupled, with a servo lock, ensuring
excellent low frequency detail. For safety purposes the amplifier includes a
D.C. protection circuit. This circuit is statically switched using extremely low
impedance Mosfet switching devices. This circuit also soft switches the power
amp on and off. The power supply is a low impedance design with a single custom
made bi-filar wound transformer, with four separate windings. The main smoothing
capacitors for the output stage are specially developed for professional audio
applications with excellent ripple characteristics and long life. The Four power
transistors per channel in the output stages are multi emitter devices with an
output capability of 26 amps per device. The FBA-800 operates in the full
balanced mode from the input of the unit to the output FacilitiesInputs Stereo
line level, stereo balanced Outputs Stereo pair multi-way locking binding posts
Front Panel Gain Selector 6dB input attenuation Front Panel Input Selector RCA
or XLR Specifications Input Sensitivity 735mV for full outputPower
Output 40 Watts into 8 Ohms both channels workingFrequency Response 0dB
20Hz-80kHzBandwidth 6Hz-113kHzSignal to Noise >96dBDistortion at 1 Watt 1kHz
>0.05% Gross Weight (packed) 25kgs Dimensions 206 x 430 x 460mm (hwd)
SUDGEN
LS21
Listino ufficiale
€. 5.162,00

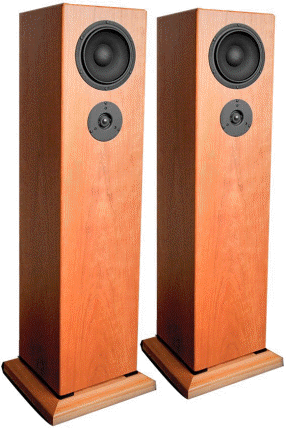

The LS21 is a tuned
quarter wave design and uses a treble and mid/base driver ported through the
plinth. The cabinet is compact but not compromised, being domestically
acceptable at less than 1m tall and less than 23cm wide. The cabinets are
manufactured in-house by our highly skilled cabinet maker. This includes all
aspects of construction from machining to veneering. Our recently installed
joinery workshop runs harmoniously alongside our existing custom engineering
shop. We feel the fit and finish of a loudspeaker is very important both
cosmetically and acoustically. Therefore the cabinets are assembled like fine
furniture should be, including real hardwood edge inlays and bonded mitre corner
locking joints. The veneers are crown cut and bookmatched, and then polished to
produce a satin finish with a low level gloss. Over time this will result in a
natural patina. Standard finishes are cherry, walnut and maple, but other exotic
finishes are available to order at an additional cost.Smooth internal air flow
is an important aspect of the quarter wave design, so the crossover has been
removed from the internal cabinet and mounted in the loudspeaker plinth. The
components used in the crossover are audiophile quality, manufactured by Mundorf.
Specifications for the treble unit (right) include large diameter voice coil,
soft dome ferrofluid filled with a sensitivity of 90db and nominal impedance of
8 Ohms. We chose the preferred bass/mid driver after careful matching to the
cabinet design. It has an identical sensitivity and nominal impedance to the
tweeter, aiding crossover design and uniformity. Again a large voice coil is
employed and the chassis is die cast aluminium providing superior
rigidity.During the development of the LS21 we have been lucky to work closely
with one of the UK’s most respected designers, Colin Walker. His involvement
with specialist quarter wave loudspeakers spans an impressive six decades. The
LS21 has undergone hundreds of hours of auditioning and refinement in our
listening room. The result is a unique handcrafted loudspeaker capable of
producing stunning realism in any top notch audio system. With a sensitivity of
90dB and an easy uniform load, the LS21 is particularly suited to class A
amplifiers. Due to the high power handling of both drive units, Class AB
amplifiers will also work beautifully with the LS21.Due to the required
manufacturing techniques and bespoke nature of our loudspeakers, every pair will
be built to order. An accurate delivery time can be given on request. The
advantage of a custom workshop is the range of special finishes on offer. The
standard finish is cherry as this is a very popular wood that sits comfortably
in most living spaces. A no cost option is American walnut as this offers a
darker alternative and Maple.
SUDGEN

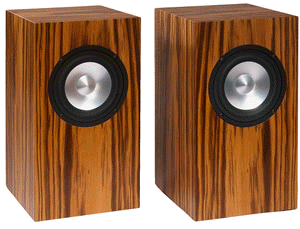

MISTRO
Listino ufficiale
€. 1.690,00
Legenda istruzioni
Clicca
per qui per vedere : FOTO PRODOTTO
 Clicca
per qui per vedere : ISTRUZIONI PRODOTTO
Clicca
per qui per vedere : CATALOGO,PROVA RIVISTE SPECIALIZZATE PRODOTTO
Nota
bene *
Per ordinare o avere
gli ultimi prezzi aggiornati telefona al
0174 670100
o invia un E-mail a
info@newaudio.it
*I prezzi indicati
sono di listino ufficiale delle case produttrici ,nel
caso di diffusori si riferisce al prezzo del
singolo diffusore per offerte ed eventuali
promozioni telefonare o inviare e-mail.
*Il
presente listino sostituisce ed annulla ogni precedente. Le caratteristiche e i
prezzi indicati possono variare senza preavviso telefonare o inviare un
e-mail per ulteriori domande e conferme sui prezzi sopra riportati.
*Tutti i marchi citati nel presente listino sono di proprietà e
registrati alle rispettive Case Produttrici
*Prezzi
franco
nostro magazzino
|
